accc

ACCC conductor is the newest type stranded conductor , usually used in the overhead power transmission lines. It has double capacity of ACSR at the same conditions.

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

Energy Efficiency

Using more aluminum with better conductivity reduces losses at every temperature of operation. When operating as a High Temperature Low Sag (HTLS) conductor, the higher operating efficiency can reduce line losses and their associated emissions by more than 35%.

This results in more power delivered to be sold and can result in lower power generation costs.

Package:New Wooden drum ,Steel Wooden Drum or according to customers' request Huadong Cable Co.,Ltd is one of the biggest professional wire

and cable manufacturers in China (Mainland), integrating the design, production, sales and service. he factory founded in 2005 and located in Yuezhuang

Village, Xindian Town, Xinzheng City, occupying 8,000 square meters.

Main products:

Bare stranded conductors, such as AAC, ACSR, AAAC, ACAR, aluminum clad steel conductor; 0.6/1KV aerial bundled cable (ABC Cable),

different voltages of XLPE insulated cables, armored cables, control cables, rubber insulated cables, PVC insulated wires and cables, etc.
These cables can be used for power transmission in air, underground or industrial, such as power station, coal, railway, agriculture and estate.

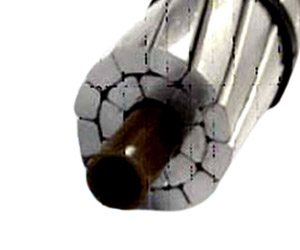

ACCC Conductor /Aluminum conductor Carbon Fiber Composite Core Reinforced conductor

ACCC conductor is the newest type stranded conductor , usually used in the overhead power transmission lines. It has double capacity of ACSR at the same conditions.

Increased Power Transfer

When compared to an ACSR that can be strung on the same towers, ACCC conductors will carry about 28% more annealed aluminum in a trapezoidal configuration giving greatly increased conductivity;

the carbon core provides increased strength and virtually eliminates high temperature sag allowing more efficient operation at up to 180°C. This can double current capacity (ampacity) over the ACSR.

Reduced High Temperature Sag

The coefficient of thermal expansion of ACCC conductor at its final condition is eight times less than typical ACSR, and the ACCC core is approximately two and a half times lighter than steel.

ACCC conductors sag very little due to thermal expansion which eliminates this as a significant design consideration.
