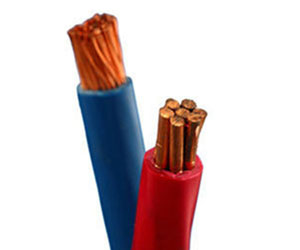

IEC60227 copper House Cable

1.Voltage Uo/U 450/750V 300/500V,2.Conductor: solid/flxible copper,3.Insultion:PVC;

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

Product feature:

Conductor Material/Type: copper Solid/stranded/flexible Core: 1/2/3/4, Voltage: 300/500v 450/750v, Insulation/Jacket Material: PVC

Style: Flat/round/twin and earth wire, Standard: IEC, BS, UL, VDE, AS/NZS, JIS, etc, Specification: Electric Wire 2.5mm2, 1.5mm2,etc

Length: 100M 200M 300M 500M Color: Green Red Yellow Black Green etc.

Description:

1.Max. Permissible Continuous Operation Temperature of The Conductor: 70°C; 2..The Ambient Temperature Under Installation Should Not Below 0°C

3.Impedance (ohms): 100±2ohm 4. Fixed -40°C to 90°C / Flexing -2

Application:

House wire Cables are suitable for household electrical appliances, small electric power tools, AC rated voltage up to and including 450/750V, and below the small household electrical appliances, electric tools, instruments and apparatuses and lighting devices, which is used for connecting power line.

Parameter 1:

Nominal	Conductor	Nominal	Max.overall	Condcutor	Min.insulated	Weight
sectional area	No/Dia.	Insulated thickness	Dia.	Resistance at	resistance at	Kg/km
mm2	mm	mm	mm	20	70MΩ/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33
4	19/0.52	0.8	4.8	4.61	0.009	48
6	19/0.64	0.8	5.6	3.08	0.0084	68
10	49/0.52	1	7.6	1.83	0.0072	115
16	49/0.64	1	8.8	1.15	0.0062	176
25	98/0.58	1.2	11	0.727	0.0058	272
35	133/0.58	1.2	12.5	0.524	0.0052	384
50	133/0.68	1.4	16.5	0.387	0.0051	510
70	189/0.68	1.4	16.5	0.268	0.0045	714
95	259/0.68	1.6	19.5	0.139	0.0035	965
120	259/0.76	1.8	22	0.153	0.0032	1210
150	259/0.85	1.8	25	0.124	0.0032 1348

Parameter 2:

Product Name	Solid/flexible Copper PVC house building wire Cable
Product standard	AS/NZS 5000.2 / IEC60227
Core	1/2/3/4cores
Operating temperature	-40 °C~90°C
Type of conductor	Class 5
Material of conductor	Copper/Aluminum
Material of insulation	PVC 5V-90/Rubber
Color of core insulation	Red/White/Blue/Black/Green/Yellow(Optional)
Material and Color of Jacket	PVC/Rubber/As your requirement
Rated Voltage	250/440V 300/500V 450/750V
Advantage	Easy to strip and terminate
Section	0.75mm2~240mm2
Popular Application	Fire Alarm / OWS & EWIS panels to detectors / Speakers / Horns / Field modules
