Introduction

Phase Conductor: Circular compacted stranded H68 aluminium to BS2627.

Conductor Screen :Extruded semi-conductive layer.

Insulation XLPE. Insulation Screen: Extruded semi-conductive layer. metallic Screen(optional): Copper wire screen or copper tape screen.

Separator Semi-conductive swellable tape. Outer Sheath: HDPE. Support Conductor: Galvanized steel wires.

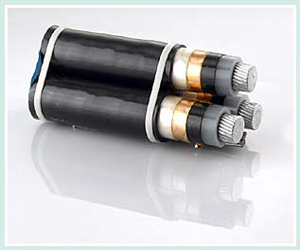

Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

Description:

ABC Power Cable has an Aluminum Alloy conductor with a XLPE sheath.

ABC Power Cable usually has 3 cores plus neutral, the neutral can either be bare or insulated and the cable can have a street light of 25mm².

ABC Power Cable is available in 600/1000V, 635/11kV or 12,7/22kV. We stock 1 core, 2 core and 3 core Aluminum Alloy cable Aerial Bunched Kabel .

Construction: 1.Stranded Aluminum/Aluminum Alloy conductor 2.PE or XLPE insulation 3.ACSR, AAAC,Galvanized steel wire Messenger wire

3 power cores consisting of standard aluminum conductors, insulated with XLPE insulation

+ One sheath lighting aluminum conductor with XLPE insulation(optional) + One messenger Al-alloy conductor (bare or covered)

The purpose of messenger wire is

A) It acts as load bearing wire. B) It acts as earth or neutral conductor

Parameter:

Construction Parameters
IEC 60502 6.35/11 kV ABC for Overhead Distribution Lines
Number of Cores x Nominal Cross Section	Phase Conductor	Messenger Suspension Unit	Continuous current rating at 300C ambient temp
Stranding	Nominal Sectional Area	Maximum Conductor Resistance	Stranding	Nominal Sectional Area	Breaking Load
No.×mm^2	No.×mm	mm^2	Ω/Km	No.×mm	mm^2	KN	A
3X50 + 1X25	19/1.78	50	0.641	7/3.0	50	60	116
3X70 + 1X50	19/.14	70	0.443	7/3.15	50	62	210
3X95+ 1X50	19/2.52	95	0.32	7/3.0	50	60	173
3X185+1X120	37/2.52	185	0.164	7/4.67	120	150	259
3X150 +1X50	37/2.25	150	0.206	7/3.15	50	62	365
3X240 +1X50	61/2.25	240	0.125	7/3.15	50	62	500
Other cross-sections can be offered upon request.
