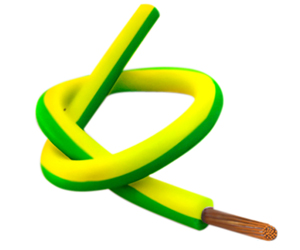

H07V-K flexible wire

1.Voltage:450/750V,2.Conductor:flexible copper,3.Insulation:PVC

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

Application:

Flexible insulated conductor used for laying in electric-installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment, same as for protective laying for lighting of nominal voltage up to 1000 V alternating current, or up to 750 V direct current against earth.

Construction:

1. Conductor: bare copper conductor, fine wired stranded, class 5. acc. to IEC 60228 / HD 383 / DIN VDE 0295

2. Insulation: PVC compound TI1 acc. to IEC 60227-3 / HD 21.3 S3 / DIN VDE 00281 part 3 Conductor acc. to IEC 60446 i.e. EN 60446 , Colour(corresponding to DIN VDE 0293)

Temperature range:

during installation: +5 °C up to +70 °C, fixed installed: -30 °C up to +70 °C, at short circuit of max. 5 s: up to 160 °C, ambient temperature at storage: up to 40 °C,

Nominal voltage: Uο/U = 450/750 V, Test voltage: 2500 V, Minimal inner bending radius: 4D for D < 8 mm, 5D for 8 - 12 mm , 6D for D > 12 mm, Behaviour in fire: IEC 60332-1

Product Advantages:

1. The long-time permissible operation temperture of conductor shall not be higher than 70 or 90 centigrate.

2. Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 oC.

3. The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0 oC.

4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.

5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

Parameter:

Dimensions – conductor cross-section	Construction of individual conductor	External diameter	Insulation thickness	Conductor resistance at 20 °C	Specific. el. resistance of insulation at 70°C	Cu weight	Cable weight	Packing*
	nominal	min-max.	nominal	max	min.		approx.
mm²	n x mm	mm	mm	Ω/km	MΩkm	kg/km	kg/km
1,5	30 x 0,25	2,8 - 03,4	0,7	13,3	0,0100	14,4	20	c.100, c.200
2,5	50 x 0,25	3,4 - 04,1	0,8	7,98	0,0095	24,0	32	c.100
4	56 x 0,30	3,9 - 04,8	0,8	4,95	0,0078	38,4	46	c.100
6	84 x 0,30	4,4 - 05,3	0,8	3,30	0,0068	57,6	65	c.100
10	80 x 0,40	5,7 - 06,8	1,0	1,91	0,0065	96,0	115	c.100
16	128 x 0,40	6,7 - 08,1	1,0	1,21	0,0053	153,6	170	c.100
25	200 x 0,40	8,4 - 10,2	1,2	0,780	0,0050	240	260	CUT
35	280 x 0,40	9,7 - 11,7	1,2	0,554	0,0043	336	360	CUT
50	400 x 0,40	11,5 - 13,9	1,4	0,386	0,0042	480	515	CUT
70	356 x 0,50	13,2 - 16,0	1,4	0,272	0,0036	672	710	CUT
95	485 x 0,50	15,1 - 18,2	1,6	0,206	0,0036	912	940	CUT
120	614 x 0,50	16,7 - 20,2	1,6	0,161	0,0032	1152	1180	CUT
150	765 x 0,50	18,6 - 22,5	1,8	0,129	0,0032	1440	1600	CUT
185	944 x 0,50	20,6 - 24,9	2,0	0,106	0,0032	1776	2100	CUT
240	1225 x 0,50	23,5 - 28,4	2,2	0,0801	0,0031	2304	3015	CUT
