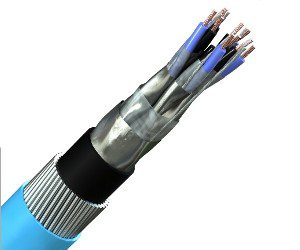

Individual+Overall screen control cable

1.Conductor: Copper/Tinned coppe,2.Standard:BS5308,3.Shield: Copper Wire Braid, Al-foil Individual and Overall Screen,4.Inner Cover: PVC,

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

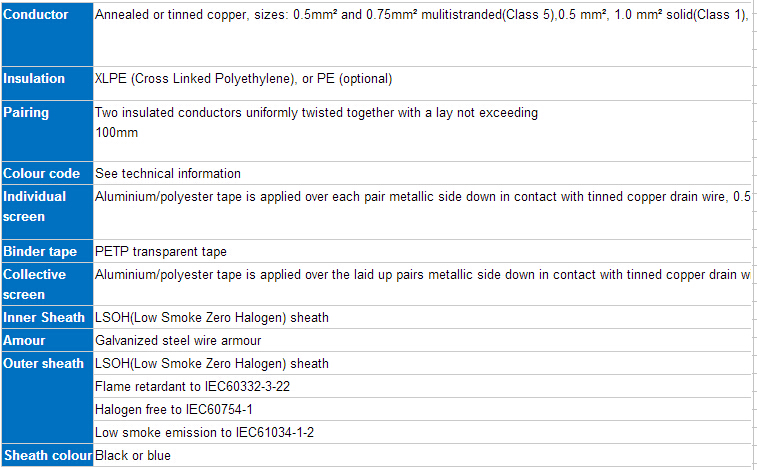

Individual+Overall screen control cable feature:

Conductor: Copper/Tinned copper

Insulation: PVC/PE/XLPE

Shield: Copper Wire Braid, Al-foil Individual and Overall Screen

Inner Cover: PVC

Armour: Steel Wire Armored/galvanized steel wire armoured

Sheath: PVC / ZR-PVC / PE / LSZH

Individual+Overall screen control cable description:

1.Control cable minimizes noise and signal interference,delievery clean signal in harsh environment and general manufacturing operations.

2.Control cable have a maximun counductor temperature at 90 °c and a low temperature rating of -40 °c.

3.the cable jacket is resistent to sunlight ,moistureand vapour penetration.

4.contorl cable is avaiable in individually shielded pairs or triads with an overall shield construction in 300v and 600v.

Controlcable application :

Control cable has a broad range of uses,particularly in the petrochemical ,pulp,paper and sawmill,and other process industries.

Control cable design for wet and dry locations ,it is resistent to mechanical damage and corrosive chenicals ,and it is often employed in raceways,direct burial and control applications .

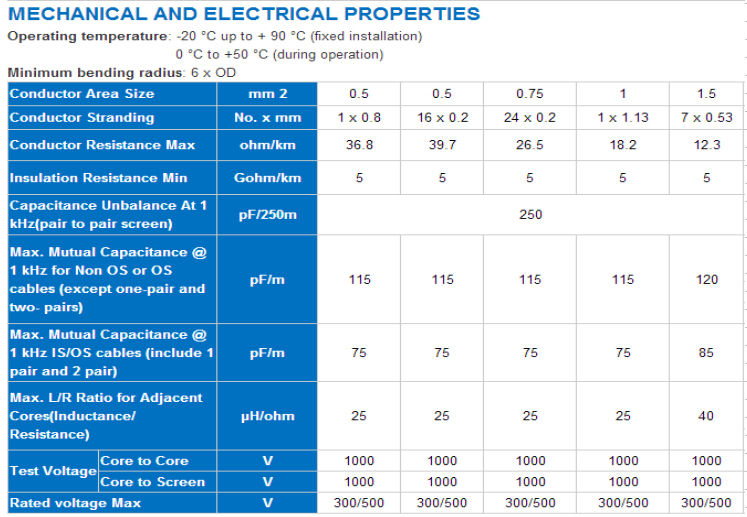

Individual+Overall screen control cable parameter:
