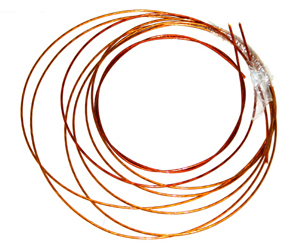

high-temperature resistant wire cable


1.Conductor:tinned,silver plated or nickke copper,2.300V/500V
IntroductionInterrelatedQuotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

product feature:

Rated voltage:600V,   test voltage:2000V          Rated temperature:500℃,        short-term temperature:+550℃
conductor:  nickel coated copper wire or pure nickel wire
insulator  mica tape wrap,fiber glass braid,PTFE impregnated flame resistant and low smoke
Applications:
Various electric machineries, electronic ceramics, heating parts, car lighting, ballast etc.
Technical date:
Insulation: Silicone rubber,        Conductor: Tinned, Silver plated or Nickel copper
Temperature: -60'C ~+550C,        Voltage: 300/500V
Color:White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green.
Parameter 1:

Sectional

Conductor

Diameter

Insulation

Outer

Max.Conductor

M/coil

Area mm²

Construction

mm

Thickness

Diameter

Resistance DC 20℃



NO.XΦmm



mm

mm

Ω/km

0.3

16x0.15

0.7

0.6

1.9

71.2

200

0.5

28x0.15

1

0.6

2.2

40.1

200

 0.50

20x0.18

1

0.6

2.2

40.1

200

0.75

42x0.15

1.2

0.65

2.5

26.7

200

 0.75

    24x0.20

1.2

0.65

2.5

26.7

200

1

32x0.20

1.3

0.7

2.7

26.7

200

1.5

30x0.25

1.6

0.7

3

13.7

100

2.5

49x0.25

2.1

0.7

3.5

8.21

100

4

56x0.30

2.9

0.7

4.3

5.09

100

6

84x0.30

3.6

0.8

5.2

3.39

100

10

84x0.40

4.8

1

6.8

1.95

100

16

126x0.40

5.8

1.1

8

1.24

100

25

210x0.39

7.7

1.5

10.7

0.795

100

Parameter 2:

Spec.

Conductor structure

Conductor OD

Insulation thickness

Wire OD

allowance

AWG

 No./mm

mm

mm

mm

mm

20

10/0.254

0.96

0.85

2.7

±0.25

18

16/0.254

1.2

0.85

2.9

±0.25

16

26/0.254

1.5

0.85

3.2

±0.30

14

41/0.254

1.9

0.85

3.6

±0.30

12

65/0.254

2.4

0.85

4.1

±0.30

10

105/0.254

3.1

1.15

5.4

±0.35

8

165/0.254

3.9

1.15

6.2

±0.40
