various thickness aluminum sheet/plate/panel

(1).thickness:0.5-200mm(2).width:500-2500mm(3).alloy:1,3,5,6,8series(4).temper:O,H12,H22,H14,H24,H16,H18

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

1.simple introduce of the aluminum sheet

(1).thickness:0.5-200mm

(2).width:500-2500mm

(3).alloy:1,3,5,6,8series

(4).temper:O,H12,H22,H14,H24,H16,H18

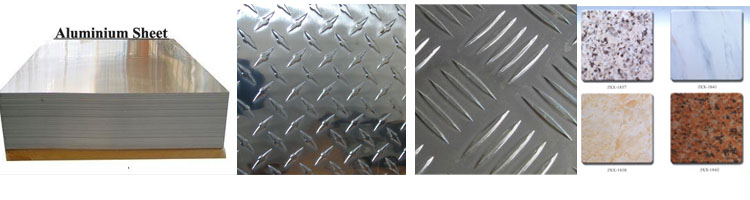

2.photoes of the aluminum sheet

3.Detail description of various thickness aluminum sheet/plate/panel

Product name	various thickness aluminum sheet/plate/panel
Alloy	Thickness(mm)	Width(mm)	Temper
A1050,A1060, A1070,A1100,A1235,A1245	0.2-3.0	20-2300	O,H12,H22,H14,H24,H16,H26,H18
A1050,A1060, A1070,A1100,A1235,A1245	4.0-12.0	1000-2300	H111,H112
A3003,A3004,A3105	0.2-3.0	20-2300	O,H12,H22,H14,H24,H16,H26,H18
A3003,A3004,A3105	4.0-12.0	1000-2300	H111,H112
A5052,A5083,A5754,A5005	0.2-3.0	20-2300	O,H12,H22,H14,H24,H16,H26,H18
A5052,A5083,A5754,A5005	4.0-12.0	1000-2300	H111,H112
A6061,A6082,A6063	0.8-3.0	20-2300	O
A8011,A1145,A1235	0.005-0.2	20-2300	O,,H18,H24
ID	76mm,152mm,200mm,300mm,505mm
Packing : stand export standard(eye to wall or eye to sky) or can by your request
Standards:ASTM-B209. EN573-1, GB/T3880.1-2006
Quality of material: totally free from defects like white rust, oil patches, roll marks, edge damage,camber, dents, holes, break lines, scratches and free from coil set
Application : Mainly used insigns, billboards, building exterior decoration, bus body, high-rise buildings and factories wall decoration, kitchen sink, lamp, fan leaves, with pieces of electronic, chemical equipment, sheet metal processing parts, deep drawing or spinning hollowware, welding parts, heat exchangers, bell surface and disk, plate, kitchenware, decorations, reflective devices, ect
Kind attention : Specifications can be customized as the customer’s requirements.
