NSGAFOU EPR and PCP sheath rubber cable

1.Voltage Rating:1.8/3kv ,2.Sheath:polychloroprene,3.Sheath Colour: black,4.Standard：DIN VDE 0250

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

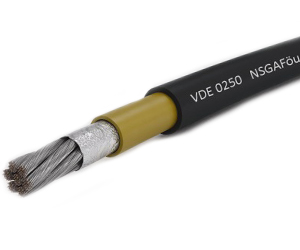

EPR and PCP sheath copper NSGAFOU rubber cable Product features

Standard:DIN VDE 0250 part 602;DIN EN 60228 class 5 (construction) ; Conductor:fine-stranded tinned copper; Sheath:polychloroprene;

Sheath Colour: black Voltage Rating:1.8/3kv; test voltage: 6kv Temperature Rating:85°C-20°C

Minimum Bending RadiusFixed: one time / fixed 6x diameter,in motion 10x diameter ; The outer diameters stated in the part number table are maximum values

Flame-retardant according IEC 60332-1-2; Oil-resistant according to EN 60811-404; Normative rated voltage classes U0/U 0.6/1 kVac and 3.6/6 kVac available on request

EPR and PCP sheath copper NSGAFOU rubber cable description:

This flame-retardant and oil-resistant cable is particularly suitable for protection against short circuits when laying and for inherently earth-fault-proof routing in buses and trains.

NSGAFOU rubber cable is suitable for use in tools, machines, devices and control cabinets,NSGAFOU is considered to be short-circuit-proof in switching equipment and

distributors up to 1000 volts.

EPR and PCP sheath copper NSGAFOU rubber cable Application range

Wiring of machines, tools, devices, appliances and control cabinets Railway vehicles, buses; short-circuit-proof up to 1000 V in switching stations and power distributors

No direct burial, except of lead-through through fire separations such as sand cups In ducts, tubes, pipes, conduits and closed installation channels Bundled or for connection of movable parts

EPR and PCP sheath copper NAGAFOU rubber cable parameter:

Part number	Conductor cross-section (mm²)	Outer diameter (mm)	Copper index (kg/km)	Weight (kg/km)
1600300	1,5	7	14.4	60
1600301	2,5	7,5	24	70
1600302	4	9	38.4	90
1600303	6	9,5	57.6	120
1600304	10	11	96	180
1600305	16	13	153.6	250
1600306	25	15	240	390
1600307	35	16,5	336	470
1600308	50	18	480	625
1600309	70	20,5	672	880
1600310	95	24	912	1190
1600311	120	26	1152	1430
1600312	150	28	1440	1750
1600313	185	31	1776	2160
1600314	240	34,5	2304	2640
3026826	300	38	2880	3545
