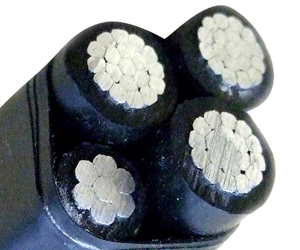

ICEA Standard Overhead Secondary Distribution Cable

1.Voltage:0.6/1KV,2.Standard:ICEA S-76-474,3.Neutral conductor: Bare AAC,AAAC,ACSR

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

Feature:

1. Standard: ICEA S-76-474. 2. Phase conductor: Stranded All Aluminum 1350; AAC. 3. Phase conductor Insulation: XLPE.

4. Neutral conductor: Bare AAC,AAAC,ACSR. 5.The Rated Voltage: 0.6/1KV

Description:

Duplex Overhead Secondary Distribution Cable assemblies consist of one insulated phase conductor and a bare neutral conductor. They are intended for use either as a service drop cable between a power pole and the service entrance, or as a secondary distribution cable between poles. Their use should be limited to circuits not exceeding 600 volts phase-to-phase and a 90°C normal conductor temperature.

Phase Conductor Construction: The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.

Neutral Conductor Construction

Cable assemblies are available with the following neutral conductors; Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded

Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded; Aluminum alloy 6201-T81, concentric-lay-stranded

Insulation Material

The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)

Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is available upon request.

The XLPE insulation meets the requirements of ANSI/ICEA S-76-474-2004 (Standard for Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulation Rated 600 Volts).

The LLDPE insulation meets the requirements of ASTM Standard D1248-05 (Standard Specification for Polyethylene Plastics Molding and Extrusion Materials).

Assembly:

The insulated phase conductor is twisted around the bare neutral conductor with a right-hand lay length of 25 to 60 times the diameter of the phase conductor.

Parameter:

Quadruplex -AAC Conductor & Neutral Messenger
Code Word	AAC Phase Conductor			AAC Neutral Messenger			Weight		Ampacity
	AWG or Kcmil	No of Strands	Insulation thickness	AWG or Kcmil	No of Strands	Breaking Strength	Pe	Xlpe	Pe	Xlpe
	AWG or Kcmil	No of Strands	Mils	AWG or Kcmil	No of Strands	Lbs	Lbs/Mft	Lbs/Mft	75 °C	90 °C
Haiotis	6	1	45	6	7	563	100.6	103.8	59	69
Petella	6	7	45	6	7	563	107.8	111.7	59	69
Fusus	4	1	45	4	7	881	149.4	153.2	78	91
Oyster	4	7	45	4	7	881	159	163.9	78	91
Clam	2	7	45	2	7	1350	239.7	245.9	106	123
Snail	1/0	7	60	1/0	7	1350	387	397.6	143	167
Murex	1/0	7	60	1/0	7	1990	387	397.6	143	167
Purpura	1/0	19	60	1/0	7	1990	382.4	392.4	143	167
Nassa	2/0	7	60	2/0	7	2510	476.7	488.6	165	193
Trophon	2/0	19	60	2/0	7	2510	470.9	482.1	165	193
Melita	3/0	19	60	3/0	19	3310	581.3	593.9	192	224
Portunus	4/0	19	60	4/0	19	4020	719.4	733.7	224	262
Nannynose	336.4	19	80	336.4	19	6146	1161.7	1185.5	295	345
