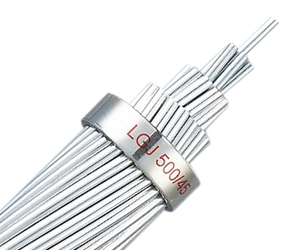

ACAR Conductor

1.ACAR conductor Aluinum Conductor Aluminum Alloy Reinforced,2. specifications: B-230, B-398, B-524.

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

1. Description:Standards/Testing Specifications: ASTM specifications: B-230, B-398, B-524

Installation: ACAR cable can be installed in air. Is is recommended that the installation instructions indicated by the local electric code, or any equipment, be followed, so that the safe guarding of persons and the integrity of the product will not be affected by deficiencies in the installation.

2. Applications

ACAR is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

3. Construction:ACAR consists of aluminum alloy wire and aluminum wires. The aluminum wires are concentrically stranded around the steel wire.

4. Features

ACAR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. I is low cost for the line and large transmission capacity. In order to foster the prevention of corrosion, the non-oxidizing grease can be fully or partially applied to ACAR.

5. Parameter:

Size of Conductor		Stranding		Area	Wire Dia.	Overall Dia.	Linear Mass	Rated Strength	Max. D.C. Resistance at 20°C
Kcmil or AWG	Cross Section	1350-H19	6201- T81	Area	Wire Dia.	Overall Dia.	Linear Mass	Rated Strength	Max. D.C. Resistance at 20°C
Kcmil or AWG	Square inch	1350-H19	6201- T81	mm2	mm	mm	kg/km	daN	Ω/km
800	0.628	33*0.1470	4*0.1470	405	3.73	26.15	1120	6800	0.072
800	0.628	30*0.1470	7*0.1470	405	3.73	26.15	1120	7370	0.073
800	0.628	24*0.1470	13*0.1470	405	3.73	26.15	1120	8080	0.075
800	0.628	18*0.1470	19*0.1470	405	3.73	26.15	1120	9010	0.077
850	0.6679	33*0.1516	4*0.1516	431	3.85	26.95	1190	7100	0.068
850	0.6679	30*0.1516	7*0.1516	431	3.85	26.95	1190	7720	0.069
850	0.6679	24*0.1516	13*0.1516	431	3.85	26.95	1190	8530	0.071
850	0.6679	18*0.1516	19*0.1516	431	3.85	26.95	1190	9500	0.072
